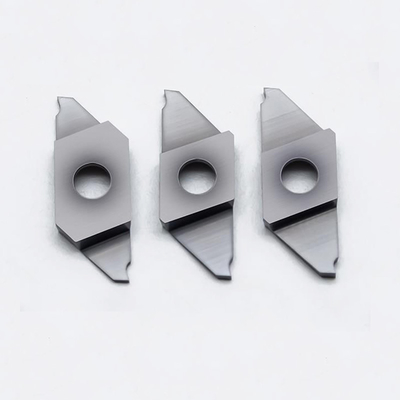

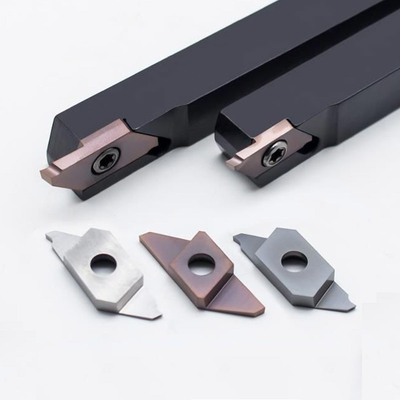

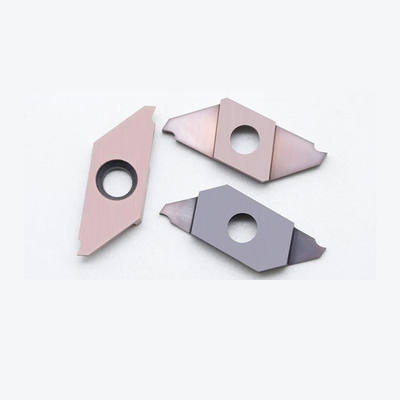

Professional NTK CTP Series CNC Carbide Grooving and Parting Off Inserts for Stainless Steel Machining

CTP Application Field

The CTP is a widely utilized type of CNC carbide insert designed for grooving and parting-off operations. It is primarily used on lathes and CNC machines, available in various shapes and cutting angles. This insert is particularly suitable for general-purpose grooving of stainless steel and similar materials.

When selecting a cut-off insert, several factors must be taken into account, including insert geometry, grade, shape (nose angle), size, nose radius, and entering (lead) angle. Careful consideration of these parameters ensures effective chip control and optimal machining performance.

Production Standard

This series of inserts primarily adheres to the standards set by NTK’s CTP series. Size specifications can be customized to meet individual customer needs.

The CTP series represents a well-established line of carbide cutting inserts from NTK. Our Drow standard production sizes and stock specifications are based on this renowned series.

For specific details, please refer to the section below.

Product Details: CTP

• Material Quality: Made from 100% original carbide powder, ensuring exceptional wear resistance and toughness.

• Dimensions:

  • Width (W): 0.5–2.0 mm
  • Angle (θ): 0° or 16°
  • Nose Radius (rε): 0.05 mm

• Coating Technology: Advanced coatings are applied based on your specific application, enhancing both corrosion and wear resistance.

• Fine Grinding Process: The insert surface is finely ground to achieve high smoothness and excellent cutting edge quality, effectively minimizing cutting resistance and friction loss.

• Perfect Fit: Precisely designed edge strips reduce the risk of micro-vibration during machining.

• Applicable Materials:

  • Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
  • Coated Inserts: Effective for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.

• Customization: If our standard stock does not meet your specific requirements, please attach CAD or 3D drawings for inquiries.

• Production Quality: All inserts are produced using high-end EU processing equipment. For further information, please refer to the “Entire Production Quick View” section.

Product Features

1. Edge Protection: Chamfering and tip-arc processing of the insert cutting edge effectively safeguard against fractures while ensuring a smooth surface on the workpiece.

2. Precision Machining: Processed using Swiss 5-axis machines for R angle and passivation treatment, achieving high precision without any burrs.

3. Superior Coating: Enhanced by a high-performance composite coating, which provides an exceptionally hard and smooth surface.

4. Efficient Chip-Breaker Design: Our professional chip-breaker design ensures optimal cutting performance and efficiency.

5. Precision Dimensions: Engineered for high accuracy, these inserts fit perfectly into tool holders, significantly reducing the risk of micro-vibration during machining.

6. Quality Materials: The base material is sourced from Europe, offering improved oxidation and wear resistance.

7. Customizable Designs: We offer various insert designs, including different dimensions, coatings, chip-breakers, and material grades to meet your specific requirements.

Carbide inserts produced by  Drow ensure efficient machining and extended tool life, receiving positive feedback worldwide.

Product Specification:

Entire Production Quick View:

1.Use 100% original carbide powder to sinter to get the integral insert blank.

2.Flat grinding machining.

3.Surrounding grinding machining.

4.Create insert cutting edge.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.

Quality Inspection:

Why Choose Us

1. Cutting-Edge Technology: We excel in quickly forming complex surfaces and functional structures while maintaining precision.

2. Efficient Production: Our short machining periods ensure timely delivery in accordance with agreed-upon schedules.

3. Premium Quality: We guarantee high standards with precision levels reaching up to 0.005-0.001 mm.

4. Confidentiality Assurance: Our triple-layer confidentiality measures safeguard your private designs, providing you with peace of mind during the proofing process.

5. Comprehensive Equipment: With excellent processing capabilities, multiple production lines, and advanced machinery, we are equipped to meet diverse manufacturing needs.

6. Cost Efficiency: Thoughtful design and material selection allow us to offer competitive pricing, helping customers access high-quality products at lower costs.

FAQ

Q1: Are insert samples available ?

A: We provide free sample,the exneeds to be paid by the buyer

Q2: Can we get a discount if our ordered quantity is big enough ?

A: Yes.We can offer you our best price and will give you a discount if your ordered quantity is big enough.

Q3: How can we trust your product quality?

A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping

Q4: What's your delivery way?

A: According to the requirements of customers,we will provide the best transportation service

Q5: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend. We sincerely do business and make friends with them, no matter where they come from.

Q6:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools industry for tens of years. Welcome to visit our company.We guarantee our products are factory price, very cheap and competitive.
